Is Copper entering crisis mode?

Under current exponential exploitation, copper supplies will peak by mid 21st century.

A recent study indicates that we may run out of economical copper by mid century.  This detailed analysis, using a painstakingly gathered database, has been discussed in the news lately.  Despite the fact that production is still currently exponential, analysis indicates we should not expect such growth beyond another 30 or 40 years; expect readily available copper to peak around the middle of this century.

The 2014 Feb 14 issue of the journal Science has a discussion of copper resource projections in its News Focus section, written by Richard Kerr, Science News editor.   The report (the full report is behind Science’s pay-wall) discusses results by Dr. Steve Mohr of the Institute for Sustainable Futures at UTS (University of Technology – Sidney, Australia).

Dr Mohr has developed a modeling program that uses current and past data, per country,  giving demand, supply and resource estimates to project probable future trends.  His program has been used to develop projections for a number of minerals.  The point is that the model aggregates many factors from individual countries into an over all projection of world resource availability.

Dr Steve Mohr - UTS 150x200Dr Damien Guirco, UTSDr Garvin Mudd - Monash Univ 150x200

Here is the abstract and handout at the October Geological Society of America meeting in Denver were by Damien Giurco – UTS, Steve Mohr – UTS, and Gavin Mudd – Monash Univ, all Australian researchers.  Dr Mudd and his workers aggregated the data a couple years ago. At the time, reports claimed these data proved we had no worries for the foreseeable future!   This same data set was analyzed by Mohr’s code, the Geologic Resource Supply-Demand Model (GeRS-DeMo), and produced drastically different projections.

Results from the Mohr & Company detailed model.

Results from Cu Production models

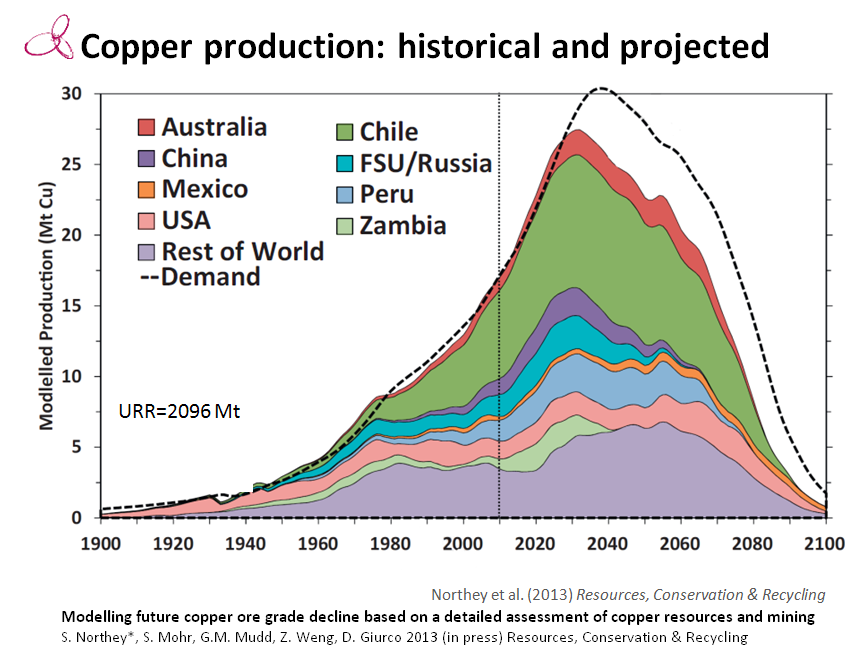

Fig 1:  Usage model projects copper production to peak mid century

This is the core graphical projection for copper, presented at the meeting, and published this month.  The label table is read left to right, top to bottom to identify the countries sequentially, from the top band on graph to the bottom.    The black dashed line is the World Demand curve.

G vs BillioniThey use several assumptions with the per-country data:  World population will grow from the 7 G person size of today to a bit over 10 G persons by 2100 (following a UN medium medium growth curve).  They also assume total the world economically recoverable copper reserve as  2.096 G tonnes.

Their data show that we are still following an exponential production growth curve today.  But new copper will become increasingly hard to obtain.

  • With high probability,  production will peak about 2040.
  • If the copper reserve value is raised by 50%, the peak would be delayed to 2045.
  • If the copper reserve value is doubled, the peak  is shifted to “about” 2050.
    (Value given in the Science report.)
  • When Science magazine had them run the projection with a 4× increase in reserves,
    the peak shifted to 2075.

Comparison with estimates by LastTechAge

This is delightful data for LastTechAge.  Several of our posts have derived and used a simple exponential growth model for world averaged data and we have not had opportunity to compare it to a rigorous model before.  The Mohr model aggregates detailed logistic data from each copper producing country to form planet-wide trends.   The LTA model is a 2 parameter calculation and can be done in a couple of seconds.  It uses …

  • Resource lifetime, YO, if usage were constant. Measured in years. This is the estimated size (in M tonnes) of the current world resource pool divided by last year’s usage (M tonnes/year)
  • Annual rate of growth in resource production… last year’s M tonnes minus the previous year’s M tonne useage.

LTA ModelWe assume unvarying exponential growth right up to point when the world has depleted the fraction f of its resource pool ( f = 0 … none used; f = 0.8 …80% used).  The resulting model is a simple logarithmic formula,  robust against errors in the size estimates –  A factor of 2 change in the reserve estimates does not change the outcome much.

The real question is:  when will the break in the curve happen? Or, when does utilization growth change from exponential to something else?  We looked at this question in detail in our Patterns in World Oil Production.pdf.   The Hubbert-Peak model uses f = 1/2 (reservoir half depleted)  as the approximate time when extraction become difficult and expensive; this is when the production curve gets a net negative slope.  We have found, that for world oil production, a better estimate of the end of exp. growth closer to 1/3.

Semilog Cu

Fig 3:  Semi-log plot, Cu production

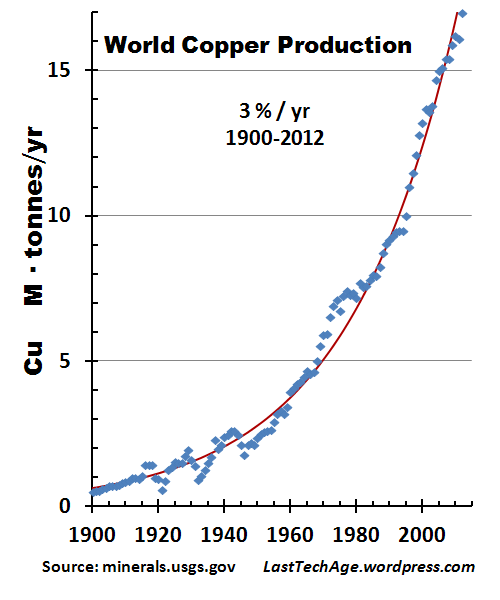

Cu Production Linear graph

Fig 2:  Linear plot, copper production

There appear to be some issues with the Mohr team’s report.  A regression to the world copper utilization data shows that growth rate as been about 3%/year.  The Mohr work here reports 1.6% growth rate for essentially the same data.  There must be a misprint somewhere.

Fig 2 is production data in a linear plot that displays the characteristic sweep of an exponential curve.   Fig 3 is a semi-log graph of the same data to display exponential growth as a straight line.  Click graphs to enlarge.

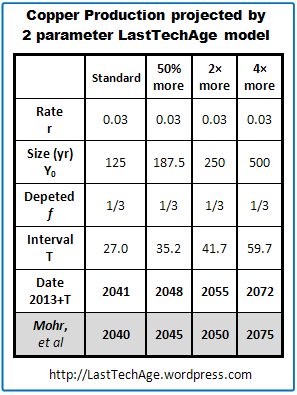

Model predictions tbl

Fig 4  Comparison of Models

Fig 4 shows results from the superficial LTA depletion model. The bottom row shows results from Mohr’s detailed logistics analysis.

We use our measurement of 3% growth rate, not the Australian team’s reported 1.6%.

There is a third parameter that must be selected with little to guide the choice, the fraction f of the reservoir that has been depleted between time t=0 and t=T.

The dates are surprisingly close together.  The LTA formula assumes exponential depletion right up to the f value’s time, but Mohr et al adds basically non-exponential  curves from each producing country and projects an overall exponential usage to very nearly peak production time.  Maybe the differences should not be so surprising.  It is gratifying to be able to make this comparison.

End Notes

Make no mistake, the model of importance is that of Mohr and his associates.  This is the hard-fact model, the one to to accept, applaud or question (if you have denialist tendencies).  It may be fun to make estimates with our formula, but the heavy lifting that leads to solid results is done by these Australian researchers.

There is a University of Michigan study of 2008 that says we can find copper in the upper 30 km of the Earth’s crust, and this would give us 5,000 years of use at 2008 rates.  This would grant us 130 more years of exponential growth (LTA model).  But picture the Earth stripped of its top 30 km cover, just for the last dregs of metal – a nightmare vision of Hell.

The image reminds me of the 1974 Larry Niven and Jerry Pournelle  novel,  Mote In God’s Eye, which is fascinating in the horrid way that leaves you chilled (review with spoiler here).  An earlier Sci Fi story about destroying the Earth for its mineral wealth is Planet for Plunder (Satellite Science Fiction Magzaine, Feb 1957) by Hal Clement and Sam Merwin.  Young teenagers of the time (me, and the girl who later became my wife) found this a stunning concept.  Magazine copies are offered on the web, as are hard- and soft- backed book forms.  Plundering the world for its resources is not a new concept, probably has been around long before these examples.

Gail Tverberg has the answer to Infinite Resourcer arguments.  Simplified summary:  Long before we actually hit the wall on resource extraction, the economics will kill the payback from heroic extraction efforts.  We will never reach the end of the reservoir, just the end of affordable resources.  She argues that this may come sooner than resource estimates might suggest.

The good (?) part that is we may have a 3 or 4 decades prior to the sudden drop in copper supplies.  The bad part is that all will look wonderful during this time; corporations will claim that nearly infinite resources mean – no need to start now in preparing for problems. But within a few years after the exponential growth ends, the world will face copper starvation.

click for our discussions about our natural resources

Their models have believable timelines, and we have been warned, though the actual production curves will be controlled by the politics of the time.  With copper, we are about where we were with oil in the mid 1980s.  See, doesn’t that make you feel much better?  Here is why LastTechAge is concerned.
……………………………….
Charles J. Armentrout, Ann Arbor
2014 Mar 03
