In a recent post, Nuclear Decisions-4, we examined whether nuclear power might be able to replace all other forms of power generation. Our answer? No, we will run out of fuel immediately we were to try.
That answer assumes we continue current US once-through policy – Sequester the fuel after it has been in a reactor and has generated enough reaction poisons to halt fission activity. The grand idea is that we will put it somewhere inaccessible by humans for the next million years.
Let’s reconsider nuclear applications with a fresh viewpoint. If we cannot replace ALL power generation, is there any fuel we could replace with uranium?
Uranium stores more energy-per-kilogram than in any other fuel
Table 1 is our chart on the energy richness of different fuels. Footnote  discusses assumptions behind this table.
Uranium is clearly much richer in energy than oil or any other fuel source. So we naturally ask: The other fuels are running out, or have pollution issues … could we substitute uranium for these and alleviate the problem?
Probable lifetime of uranium reserve, TU = 230 years.
In the Annex (down below), uranium industry data shows that the world currently uses about 71,000 t of natural uranium each year, and the EIA  says we generate 2.6 T kWh (trillion kiloWatt hours, a.k.a tera kiloWatt hours) annually. Based on the RAR (Reasonably Assured Resource) of 5.4 Mt (mega tons) of natural uranium, we expect natural U to last 76 years if used at its current rate (constant, no change over the lifetime).
Most people in the industry would multiply the RAR by 2 or 3. The current low prospecting level for uranium will go up when positive returns on investment happen; people expect large increases in potential mining sites when proper geological surveys are conducted.
If the uranium demand is to triple the amount expected ore, the probable lifetime of mineable resources will be nearly 230 yrs.
We will use the basic 76 year value for our Expected values. We stretch each answer by 3 for the Probable value.
Replace petroleum energy by nuclear?
Society has either reached the end of exponential increases in petroleum products, or is very close to that peak point. Ever-increasing demand will NOT be met in the future. This paints a grim vision of ever-increasing prices for the same (or decreasing amounts) of oil. Ready cameras Scene-I backstory: crashing economies, raging wars, diseased and poverty-stricken masses, small enclaves of ultra rich trying to stay comfortable.
Petroleum data: World consumption 2010 : 84.5 M bl/d, 30.7 G bl/y. Energy generated: 178 Quads (quadrillion BTU aka 1015 BTU), or 52.2 T kWh per year.
Nuclear option: If nuclear were to take over the petroleum supply, it must annually supply the petroleum energy, in addition to the amount it currently generates. For a reserve of a fixed size, Usage × Lifetime is constant. Use more, the reserve lasts less,
54.8 * T = 2.6*76 … Right side: Fig 1, Left side, new total energy × lifetime petroleum replacement, Right side is current nuclear usage
Petroleum Answer: The probable lifetime is 11 yr. No, nuclear resources are not an alternative for petroleum. One decade to resource exhaustion would not be sufficient gain for the price we must pay to … build reactors, operate them safely, decommission them after natural U is gone, and then finding guaranteed safe storage for the waste.
Replace coal energy by nuclear?
Coal is very destructive to the environment. Cities that use it have terrible smog. Currently burning releases 6 billion tons(6 Gt) into the atmosphere and is a strong driver of the greenhouse effects. Temperatures are indeed rising, releasing more free energy into the atmosphere; causing more chaotic swings in environmental turbulence. We really could use an alternative to burning our several hundred year coal reserve, especially high sulfur coal. Could we do this with the nuclear option?
Coal data: World consumption : In 2009, world use was 7 M t of coal, 143 Quads of energy, corresponding to 42 T kWh in energy. This is a very rough estimate because of huge variation in thermal energy in the various kinds of coal.
Following oil replacement ideas, 44.6 * t = 2.6*76. Expected NatU lifetime = 4.4 yrs.
Coal Answer: No, Nuclear power is not an option to replace coal use. One and a half decades to resource exhaustion would not be sufficient gain for the price we must pay. If every country decided to do this, the reserve would drain and resource wars would be probable..
Analysis of our four previous Decision posts, indicated at least these 3 points:
- The power generating reactors around the world are a real and present threat.
- Fuel melt down incidents need not be inevitable. We never need watch another one happen. We could have built intrinsically safe reactors decades ago.
- Sequestration strategies can not be trusted. The time frame for safe-keep is well beyond our ability to predict. Failed sequestration will have fatal consequences.
Our point here is that, as energy-rich as uranium may be, it can not make up for the failing energy sources that society depends on. We are blocked from success by our once-through rule. The root cause behind this rule is not a technical issue, but a social one: Governments do not believe they can control the overseers who gain financially from nuclear power. This is a sad truth; because of it, we did not adopt reactors that are intrinsic safety and burn “waste” fuel.
The once-through rule plus operating reactors form the worse case scenario. Reactor disasters will continue to occur throughout this century. As our petroleum base becomes ever more expensive, each new incident will be harder to contain that its predecessor. If we do not act (and soon), the present system will crumble in its weakest spots, and society at year 2100 will be significantly degraded.
All our estimates of limited uranium resources become moot if we can burn the “waste” fuel for energy; they become meaningless if we learn to safely breed fuel. With a rich source of power to build on, we can develop maintainable lifestyles – decent food, good medical treatment, well-paying jobs that allow us to live with pride.
This requires we build reprocessing plants to supply the new type of intrinsically safe gas cooled reactors. These new plants must be government-run and military guarded. This can work, we did this after WW-II with the National Laboratories that handles nuclear weapons information.
I admit to a bit of discomfort with this statement, probably due to personal decisions made long ago. I decided to study plasma physics and fusion technology rather than nuclear physics and reactor technology partly from my personal distrust of the fission power politics …but… The bedrock of hard fact remains: we cannot sustain ourselves as a society without a rich energy resource to draw on. Fusion was abandoned, fission remains the only viable source that can support energy intense activities such as manufacturing and mining.
And we can do the job. We can extend existing nuclear options until sea water is an economic reality. There is yet a path to a secure, sustainable and comfortable future based on the astonishing technical achievements we have made collectively during the last several thousand years.
We could, but we must make the decision soon. Indecision is a decision for the downward path. Decisions to extend the status quo, even by massive amounts, would drain irreplaceable resources into inadequate (current) solutions; it would only enrich vested interests. This this would enhance our decline, not our future. Do we in the US have the will? Do we in the US, Canada and Europe have the will? Do we in…
Charles J. Armentrout, Ann Arbor
May 29, 2011, Update 2013 Apr 10, added tables
Listed under Technology … Technology > Fission
Have a comment? Click on the title of this post, go to bottom, let us know.
Related posts: Click the INDEX button under the Banner picture
Annex: Available Uranium
Previous estimate. In Nuclear Decisions-4, we followed the lead of an estimate for uranium that was published in the popular science magazine, Scientific American . Three parameters were needed:
- World energy use
(2.8 T kWh/yr),
- Power generated by LEU
(1 t LEU produces 400 M kWh)
- Amount of natU needed to make LEU (10 kg natU per kg LEU).
These were sourced back to the US Department of Energy’s Energy Information Agency. Note: T means million×million, pronounced as “tera” (international standards) or “trillion” (US convention). Results – the world uses about 70,000 t of uranium each year and if we multiply the known reserves by 3 to account for undiscovered resources, we calculate a 260 year supply in the uranium reservoir.
We will not distinguish between metric and English tons because they differ by only 10% and our estimates will certainly be no better than 10-20% of the exact value.
Second estimate: Same question from economic viewpoint. Uranium occurs in nearly everything , with 2.8 ppM average concentration in the soil and 3 ppBillion in sea water (about 500 M tons of U). This is so dilute that the huge majority of it is not obtainable in any cost effective way. This differs from petroleum which exists in well defined pools.

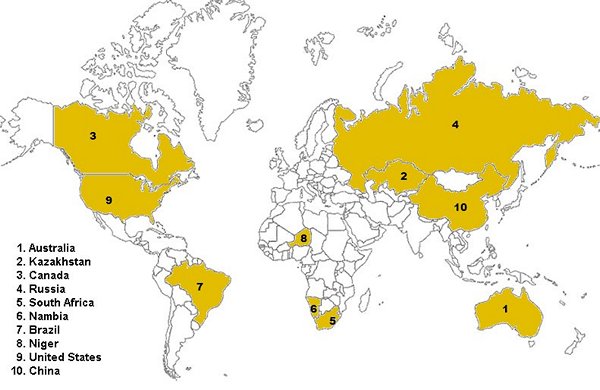

Mineable deposits of U do exist and Fig 2 shows that the top three reserves are in Australia(31%), Kazakhstan (12%) and Canada (9%) . The US has about 4% of the known deposits. Kazakhstan is the leading ore producer. The result of extracting natU from ore is a yellow powder compound, called yellowcake.
A few mines have U at concentrations of about 10% (1 kg U per 10 kg ore) or more, but most are much less. Fig 3 shows ore classifications, which is done by concentration, which extend between 0.01% (1 kg natU per 10 tons of ore) and 10%. On this kind of log graph, the width of the decades are the same, but steps shrink as they move up from 1 to 9. The average is about 0.15% (1.5 kg natU per ton of ore). The kind of matrix also matters, from soft sandstone (cheap to extract) to hard granite (expensive to extract).
If concentrations are below 0.01: (A) the ore is uneconomical to mine, and, (B) it would be better to use the extraction fuel carbon-based to generate energy because it would produce less CO2 per kWh than would be emitted by processing the uranium needed to generate the same amount of kWh .
All of this is relevant to estimates of how much natU exists in usable concentrations. Although there is a lot at low concentrations, for power generation, we will extract only that which gives a positive return on investment. Fig 4 shows the relationships between supply and demand for uranium . Supply is controlled by the cost of exploration, mining operations and natU extraction; demand is controlled by the number of users who want it. Two demand curves are shown, one is for the power generation industry and the other is said to include naval uses.

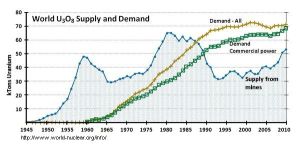

Total world-wide demand is about 71 kt / year. This is from Fig 4. It is interesting to note that supply only contributed 54 kt of natU. Currently, the difference is being made up from military stock, mostly from the former Soviet Union states that are dismantling their atomic weapons supply and selling a mix of plutonium and depleted uranium left over from the enrichment process. The result is MOX, discussed in Decisions-4 and usable in most light water reactors. International agreements on this end in 2013, and mining must make up the natU difference.

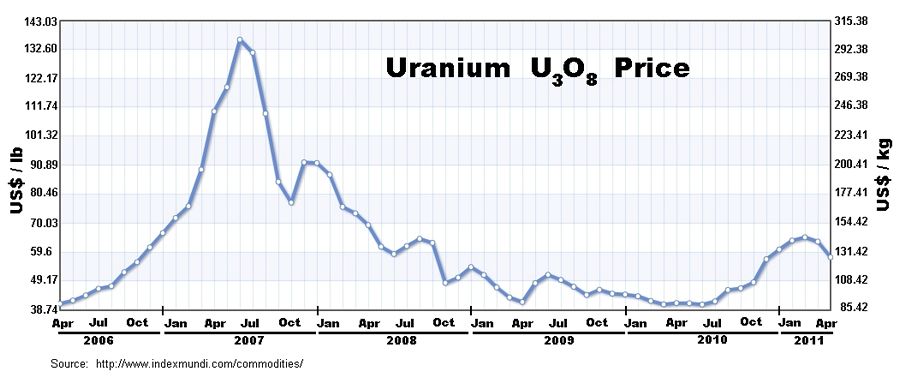

Uranium prices rose as the reality of disappearing cheap oil began to impinge, Fig 5 show spot price history. The power industry renewed exploration and began application of truly dirty mining techniques. This price trend has an impact on estimates of uranium reserves.
World proven reserves amount to 5.4 Mt of uranium.  This is the Reasonably Assured Resource (RAR) value for when the selling prices is US$ 130/kg. The situation is slightly different than that for petroleum, where the oil is found only in well defined pools. Since uranium exists in almost all types of rock throughout the world, the RAR always must be tied to the selling price, not to an estimate of a finite number of pools. In 2007, we saw estimates of 6.3 Mt, but check the US$/kg levels of Fig 5.
There is a twist, however, that I have not seen discussed. Several things must be happening right now. Refer to the discussion between Figs 3 and 4, above. As easy petroleum disappears and the price of oil rises and the “front end” enrichment costs of extraction must be going up fast. This would have a negative effect, but uranium produces much more power kg for kg than oil and the value of finished LEU will increase as the petroleum supply decreases. [Ok, here is what happens— At peak oil, we will not see a reduction in the barrels of oil available, but we will see the loss of ability to meet the relentless growth in energy demand. This will cause a premium to appear on electric power, one that uranium based sources almost certainly will try to fill, CO2 be damned.]
Estimates in Uranium Reservoir Lifetime – 76 years.
Assume that the enriched and processed uranium is once in a reactor. When fission products build high enough to poison the reactions, that fuel is removed and sent to sequestration, a limbo existence for the next million years.
Lifetime for reserve TU = (5.4 Mt available) / (71 kt/yr use) = 76 years. This is close to the value given in the literature [12, 13].
Will this get bigger? Yes, when prospecting efforts return to earlier levels. There is a lower limit to usable ore concentration in the soil because extraction becomes too expensive and generates too much CO2 to justify. There has been an interesting scientific study in Japan in filtering natU from sea water, but this is truly at the level of an enjoyable experiment or a very early prototype. Sea water extraction may actually become feasible, but as with most things, once engineering realities hit, financial and environmental impacts will shoot up. This has happened in almost all industries. Atomic power, fusion power, superconductivity cables, fiber optic transmission lines, space exploration – none of the big technologies are home runs, they have all proven to be real challenges.
 This table combines data taken from a number of sources, including:
• link for fuel equivalents removed by request 2014 Aug 25
There are a number of grades of coal and wood which makes any standardized comparison difficult. Uranium energy might mean fissile 235U, or any of the possible enrichment levels of LEU ( anywhere in 3 to5%). It could mean the natural U, U3O8, (yellowcake) found in ore with reported energy content scaled for use in LEU. Or it could be natural U with much larger energy reported as when used in a CANDU class reactor.

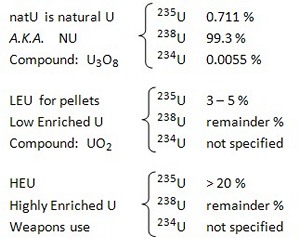

The last row in our Table 1 is for light water reactor grade fuel enriched to 4.3% in 235U. It makes sense to compare fuels to the natural uranium (natU or NU) which is the material that is mined, not LEU, since all reserves are listed for yellow cake mining and extraction. We are not really concerned with the reactor capability, just the natural uranium in ore. Return
 EIA-nuclear. EIA is the US governments source of energy-related data. Return
 Petroleum usage: EIA-petroleum. Return
 Coal usage: EIA-Coal. Return
 Steve Fetter, “How long with the world’s uranium supplies last” Scientific American, March 2009. The version referred to here was the on-line response. published January 26, 2009. Return
 World usage in kWh energy units is from EIA but at a slightly lower value than in . Return
 Much of the data for this post comes from the World Nuclear Association, an activity coordinator with most of the nuclear-capable counties as members. WNA-Inf75. List of WNA resources. Return
 WNA-inf75 . Return
 David Flemming’s Lean Guide, especially Sect. 2, p8. Also see Oxford Research Group, Jan Willem Storm van Leeuwen’s Energy from Uranium Sect 4 for costs and later for ore grades. Return
 Supply and demand is in many sources. Here is source from World Nuclear Association WNA-inf23. Return
 Reservoir estimates at U-mining. The IAEA estimates that at the start of 2009, RAR = 6.3 million t for a price of US$300/kg. Return
 The Nuclear Energy Agency (NEA) is a specialised agency within the Organisation for Economic Co-operation and Development (OECD), an intergovernmental organisation of industrialised countries, based in Paris, France. The NEA publishes (for free download) the discussion, Nuclear Energy Today . The OECD’s “Red Book” may be the best source on the quantity and quality of the remaining uranium ore, and of future prospects for production. Return
 A good, short source to see the issues: The Lean Guide to Nuclear Energy, by David Flemming. Return
